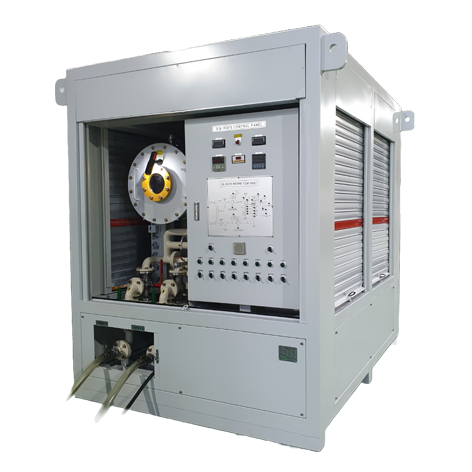

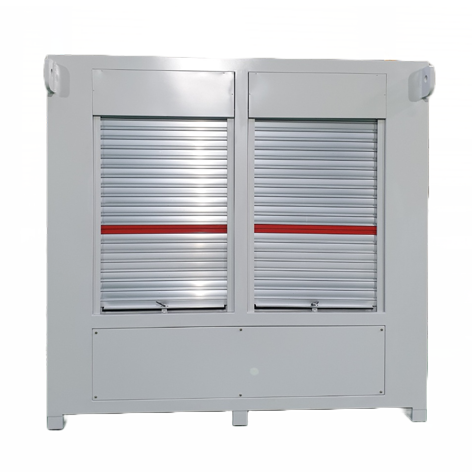

OIL FILTERING MACHINE
This treatment plant can be operated in a portably position, designed for outdoor operation and automatic operation. filtering, de-gassing and dehydration of transformer oil under vacuum.
PERFORMANCE & SPECIFICATION
| MODEL | OFM-2000 | OFM-4000 | OFM-9000 | OFM-12000 | |
|---|---|---|---|---|---|
| CAPACITY | 2000ℓ/hr | 4000ℓ/hr | 9000ℓ/hr | 12000ℓ/hr | |
| POWER | 40 Kw | 60 Kw | 105 Kw | 135 Kw | |
| HEATING UNIT | CAPACITY | 30 Kw | 50 Kw | 90 Kw | 120 Kw |
| CONTROL | 10kw*3EA | 10kw*5EA | 15kw*6EA | 15kw*8EA | |
| OIL PUMP | SUCTION | VACUUM | VACUUM | 2.2 Kw | 2.2 Kw |
| DISCHARGE | 1.5 Kw | 2.2 Kw | 5.5 Kw | 5.5 Kw | |
| OIL ROTARY VACUUM PUNP | OIL ROTARY VACUUM | 1,500ℓ/min | 1,500ℓ/min | 4,500ℓ/min | 4,500ℓ/min |
| MECHANICAL BOOSTER | 330 ㎥/hr | 600 ㎥/hr | 600 ㎥/hr | 1200 ㎥/hr | |
| ULTIMATE PRESS | 0.05 Torr | 0.05 Torr | 0.05 Torr | 0.05 Torr | |
| TANK CAPACITY | 300ℓ | 400ℓ | 600ℓ | 700ℓ | |
| FILTER METHOD | 1EA | 1EA | 3EA | 3EA | |
| COOLING METHOD | AIR COOLED | AIR COOLED | AIR COOLED | AIR COOLED | |
| POWER SUPPLY CONDITION | USER SPEC | USER SPEC | USER SPEC | USER SPEC | |
| FILTERING ABILITY | 1μ LESS | 1μ LESS | 1μ LESS | 1μ LESS | |
