Creative spirit and continuous development of technology Dongyang Vacuum Technology

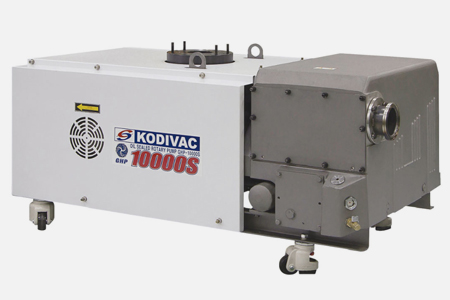

GHP-10000S(Single Stage)
PERFORMANCE & SPECIFICATION
| Unit | 50Hz | 60Hz | ||
|---|---|---|---|---|
| Designed Pumping Speed | ℓ / min | 8000 | 10000 | |
| Effective Pumping Speed | ℓ / min | 6700 | 8400 | |
| Ultimate vaccum | Torr(Pa) | 2.2 X 10-2(6.5) | ||
| Motor power | 3Φ | KW | 15 | |
| Oil capacity | Max | ℓ | 30 | |
| Min | ℓ | 25 | ||
| Cooling | Water cooling | |||
| Cooling water flow | ℓ / min | 7.5(at 20℃) | ||
| Inlet connection | ISO 160 | |||
| Outlet connection | ISO 100 | |||
| Weight | kg | 650 | ||
| Oil | Moly-3000 | |||
Features
• Oil rotary vacuum pump using 3 VANEs
• Low-noise, low-vacuum pump design eliminates the need for expensive equipment and facility work
• Increased oil change interval by using a large oil tank, easy cleaning of the oil tank and maintenance of the pump
• Easy cartridge type filter replacement as the oil mist trap is assembled in the oil tank
• Increase pump life by lowering oil temperature by using a dedicated oil cooler (aluminum)
• Use of intake and exhaust ports according to international standards (ISO FLANGE)
• Evaporation/dryer, vacuum deposition, ion plating
• Vacuum drying, freeze drying, vacuum degassing
• Leak test system
• Gas exchange, filling, vacuum insulation
• Heat treatment, melting furnace
• Various other vacuum systems
