Creative spirit and continuous development of technology Dongyang Vacuum Technology

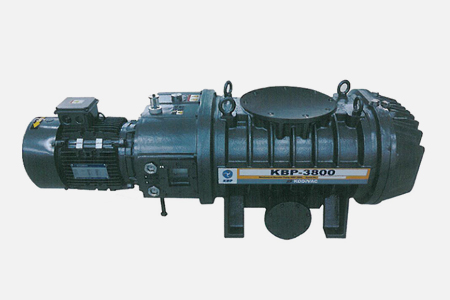

KBP-3800
PERFORMANCE & SPECIFICATION
| NO | Division | Emphysema | KBP-3800 |
|---|---|---|---|
| 1 | Ultimate pressure | Torr | 5X10-4 |
| 2 | Pumping speed 60Hz | ㎥/hr | 3,800 |
| 3 | Pumping speed 60Hz | ℓ/min | 63,000 |
| 4 | Motor power | KW | 7.5 |
| 5 | Voltage | volt | 220/380 |
| 6 | Rotational speed(60Hz) | R.P.M | 3500 |
| 7 | Type oil | ULTRAGRADE 20 | |
| 8 | Oil capacity / Gear | Liter | 3.5 |
| 9 | Oil capacity / Coupling | Liter | 6.5 |
| 10 | Oil capacity / Shaft seal | Liter | 0.2 |
| 11 | Inlet port | ISO 250 | |
| 12 | Oulet port | ISO 100 | |
| 13 | Weight | Kg | 440 |
| 14 | Coolinge method | Water Cooling | |
| 15 | Cooling water flow | ℓ / min | 16 |
Features
• It has a good abrasion resistant by auto speed adjustment according to load factor.
• Low oil temperature and high durability caused by installation of cooling fan influid coupling.
• Easy to combine with exhausting system for a backing pump.
• It is combine for a backing pump when exhaust oiless compressed gas or vapour.
• Applicable to a system that require short pumping time.
• For exhausting or suction of high purity activated gas.
• Vaccum dry, vaccum evaporation, vaccum deformation, vaccum sintering, food, madical freezing dry, degas, bubble remotion.
